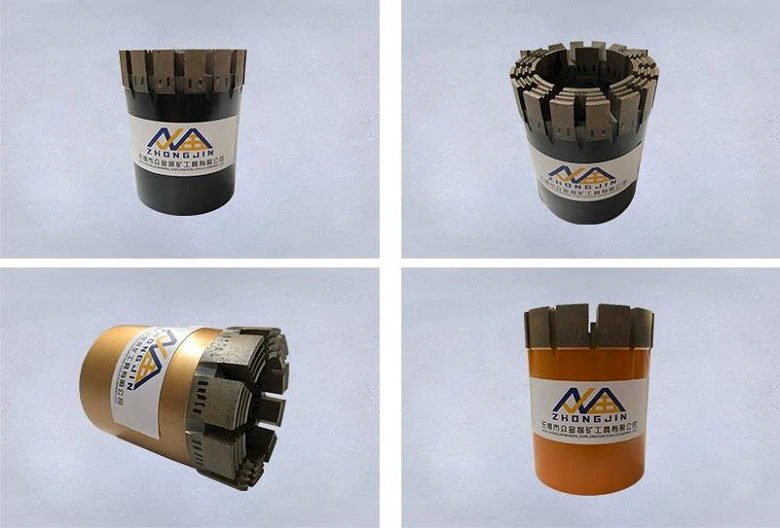

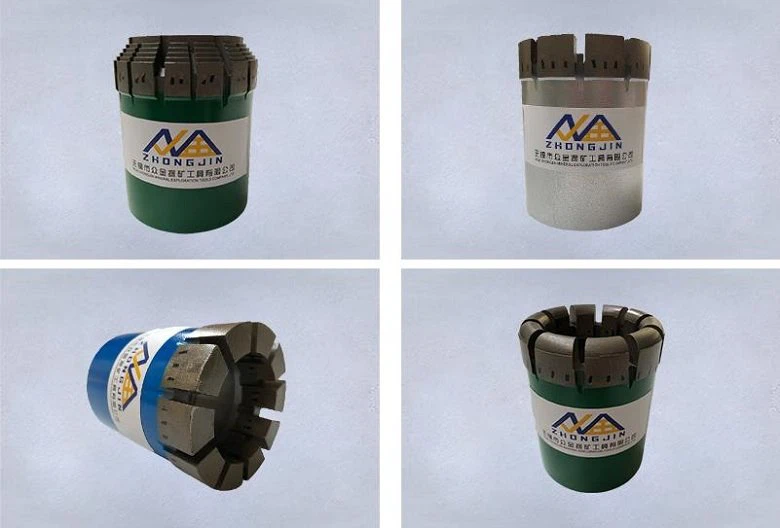

Impregnated Diamond Bit

Product Description

Impregnated diamond bits are the most commonly used bits in mineral exploration because they have the widest range of applications. Carefully selected high-quality synthetic diamond grades are distributed deep within the matrix series of the impregnated bits. The matrix layer of the crown contains a uniform distribution of these crystals embedded in a powder metal bond. Our impregnated bit matrix is designed to expose new diamonds to the cutting face of the bit as wear occurs. Due to this effect, a fast penetration rate can be maintained.

Our impregnated diamond core drill bits are designed to provide the best penetration rate and bit life necessary to keep diamond drilling costs to a minimum. The optimum diamond size, concentration and matrix type depend on the hardness and abrasiveness of the formation to be drilled.

Main Features
* Drilling speed and long service life;
* The design of more cutting edges makes drilling progress smoother;
* During the manufacturing process, the diamond is free erosion and fully utilized
* Various configurations and meet various needs of local conditions
* Offers the most widely-used bit matrices as well, with various specifications, providing an easy selection and reliable foundation for your drilling needs.

Size of Impregnated Diamond Bits and Reaming Shells

Model	Outside Diameter of Core Bit		Inside Diameter of Core Bit		Outside Diameter of Reaming shell
	Inches	mm	Inches	mm	Inches	mm
BTW	2.345	59.56	1.667	42.1	2.36	59.95
NTW	2.965	75.31	2.218	56.1	2.98	75.7
HTW	3.762	95.57	2.809	71.1	3.783	96.09
AQ	1.875	47.63	1.062	26.97	1.89	48.01
BQ	2.345	59.56	1.433	36.4	2.36	59.95
BQ3	2.345	59.56	1.32	33.53	2.36	59.95
NQ	2.965	75.31	1.875	47.63	2.98	75.7
NQ3	2.965	75.31	1.775	45.08	2.98	75.7
HQ	3.762	95.57	2.5	63.5	3.783	96.09
HQ3	3.762	95.57	2.406	61.11	3.783	96.09
PQ	4.805	122.05	3.345	84.96	4.828	122.65
PQ3	4.805	122.05	3.27	83.06	4.828	122.65
T2-56	2.205	56	1.642	41.7	2.224	56.5
T2-76	2.992	76	2.429	61.7	3.019	76.5
T2-86	3.385	86	2.823	71.7	3.406	86.5
T2-101	3.976	101	3.295	83.7	3.996	101.5
T6-101	3.976	101	3.11	79	3.996	101.5
T6-131	5.157	131	4.252	108	5.157	131.5

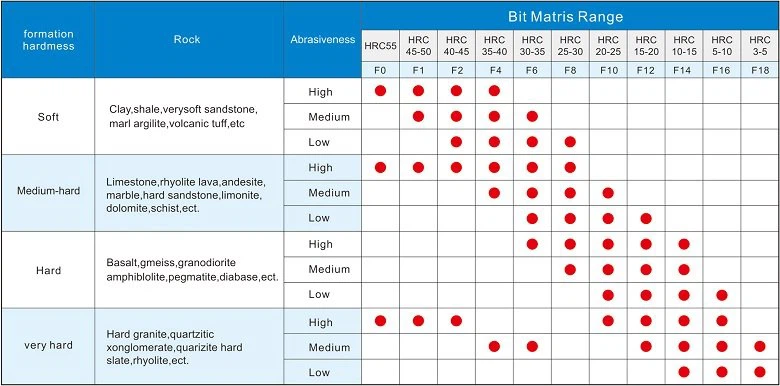

Select Reference Table of Impregnated Diamond Bit

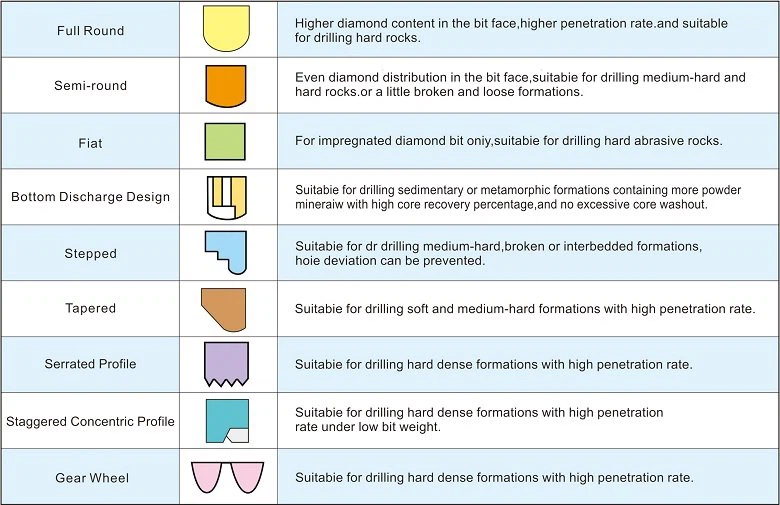

Impregnated Diamond Bit Crown Shapes
