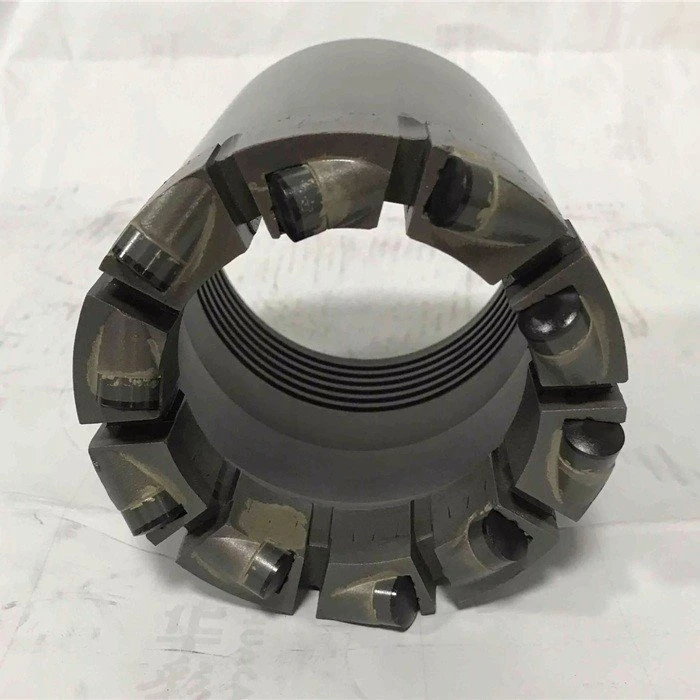

PDC Core Bit

Product Description
PDC core bits provide a very long working life, very fast penetration rates and high percent core recoveries for soft to hard rock formations.

PDC core drill bits are ideal for use with high-powered drill rigs that operate at relatively low rpm. PDC bit's life and penetration are much better compared to surface setting bits.

There are two main types of PDC cutters to choose from; traditional flat design or domed.

Zhongjin specializes in producing PDC core bits, diamond core bits, Tricone bits, reamer shells, casing shoes, etc. inquiry, reasonable price. Special design is available upon your requirement.

Advantages of PDC Drill Bit
* Fast penetration
* High efficiency
* Strong abrasion resistance
* Good performance for rock formations
* No special demands for equipment
* Long service life

Basic Info

Original: Wuxi, China	Certification: ISO9001
Price: Negotiable	Model No: BQ, NQ, HQ, PQ, NTW, BTW, HTW, PTW
Usage: Wireline core barrel parts	Payment Term: TT, LC
Delivery Date: Negotiable	Packing: Export standard
Standard: DCDMA	MOQ: 1 PC

Applications
PDC core bit adopts the groove surface discharge hole type, which has a large flow rate, and can minimize the occurrence of blockage of the discharge hole. It is suitable for drilling in fractured formations with more flushing fluid and cuttings. It is widely used in geological drilling, coal mining, water conservancy, hydropower engineering, and the construction of roads, railways, and bridges.

Technical Specifications

Model	Outside Diameter of Core Bit		Inside Diameter of Core Bit		Outside Diameter of Reaming shell
	Inches	mm	Inches	mm	Inches	mm
BTW	2.345	59.56	1.667	42.1	2.36	59.95
NTW	2.965	75.31	2.218	56.1	2.98	75.7
HTW	3.762	95.57	2.809	71.1	3.783	96.09
AQ	1.875	47.63	1.062	26.97	1.89	48.01
BQ	2.345	59.56	1.433	36.4	2.36	59.95
BQ3	2.345	59.56	1.32	33.53	2.36	59.95
NQ	2.965	75.31	1.875	47.63	2.98	75.7
NQ3	2.965	75.31	1.775	45.08	2.98	75.7
HQ	3.762	95.57	2.5	63.5	3.783	96.09
HQ3	3.762	95.57	2.406	61.11	3.783	96.09
PQ	4.805	122.05	3.345	84.96	4.828	122.65
PQ3	4.805	122.05	3.27	83.06	4.828	122.65
T2-56	2.205	56	1.642	41.7	2.224	56.5
T2-76	2.992	76	2.429	61.7	3.019	76.5
T2-86	3.385	86	2.823	71.7	3.406	86.5
T2-101	3.976	101	3.295	83.7	3.996	101.5
T6-101	3.976	101	3.11	79	3.996	101.5
T6-131	5.157	131	4.252	108	5.157	131.5
