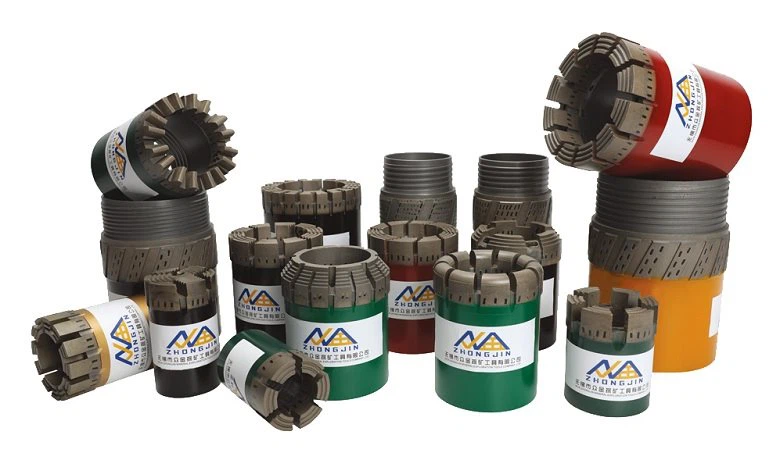

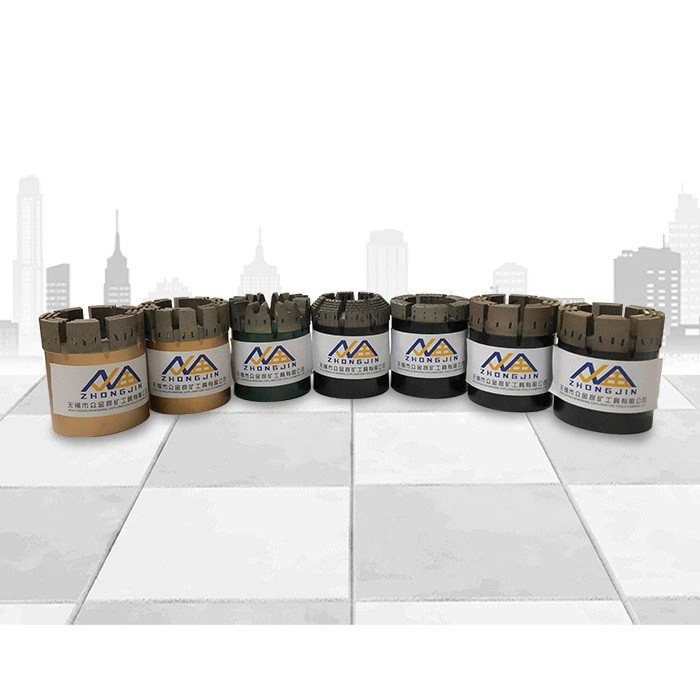

Impregnated Diamond Core Bit

Product Description

Impregnated diamond core bits are mainly composed of diamond, steel body, cemented carbide powder and polycrystalline diamond. Polycrystalline diamond is used to avoid excessive wear of the drill bit. Impregnated diamonds are synthetic diamonds (also called synthetic diamonds), which are less expensive but more suitable for drilling hard formations.

Impregnated diamond core drill bits are usually used for drilling hard soil layers (hard formations or formations), and are very suitable for 5-10 grade formations and various abrasive formations to break and not break. In order to prevent excessive wear of the inner and outer diameters of the drill bit, cemented carbide inserts are placed on the side of each outer waterway, and larger diamonds are used in the inner and outer diameters.

The main technical parameters of the lip surface of the impregnated diamond bit include the type, particle size, concentration and grade of diamond, the hardness of the matrix and the shape of the lip surface. If the user chooses the drill bit of our company reasonably according to the formation conditions, it can satisfactorily drill in various hardness and abrasive formations.

Characteristics of Impregnated Diamond Core Bit
* They have a world-class quality.
* The diamond core bits of Zhongjin are accustomed to the strong and hard rocks in China, having a great capabilityin tunneling.
* Any type or size can be produced.
* The speed of Zhongjin by impregnated diamond core bits is unmatched by any other companies' products.
* It has the best quality synthetic diamond powder, best metal powder, and shank.

Size of Impregnated Diamond Core Bits and Reaming Shells

Model	Outside Diameter of Core Bit		Inside Diameter of Core Bit		Outside Diameter of Reaming shell
	Inches	mm	Inches	mm	Inches	mm
BTW	2.345	59.56	1.667	42.1	2.36	59.95
NTW	2.965	75.31	2.218	56.1	2.98	75.7
HTW	3.762	95.57	2.809	71.1	3.783	96.09
AQ	1.875	47.63	1.062	26.97	1.89	48.01
BQ	2.345	59.56	1.433	36.4	2.36	59.95
BQ3	2.345	59.56	1.32	33.53	2.36	59.95
NQ	2.965	75.31	1.875	47.63	2.98	75.7
NQ3	2.965	75.31	1.775	45.08	2.98	75.7
HQ	3.762	95.57	2.5	63.5	3.783	96.09
HQ3	3.762	95.57	2.406	61.11	3.783	96.09
PQ	4.805	122.05	3.345	84.96	4.828	122.65
PQ3	4.805	122.05	3.27	83.06	4.828	122.65
T2-56	2.205	56	1.642	41.7	2.224	56.5
T2-76	2.992	76	2.429	61.7	3.019	76.5
T2-86	3.385	86	2.823	71.7	3.406	86.5
T2-101	3.976	101	3.295	83.7	3.996	101.5
T6-101	3.976	101	3.11	79	3.996	101.5
T6-131	5.157	131	4.252	108	5.157	131.5

Select Reference Table of Diamond Core Bit

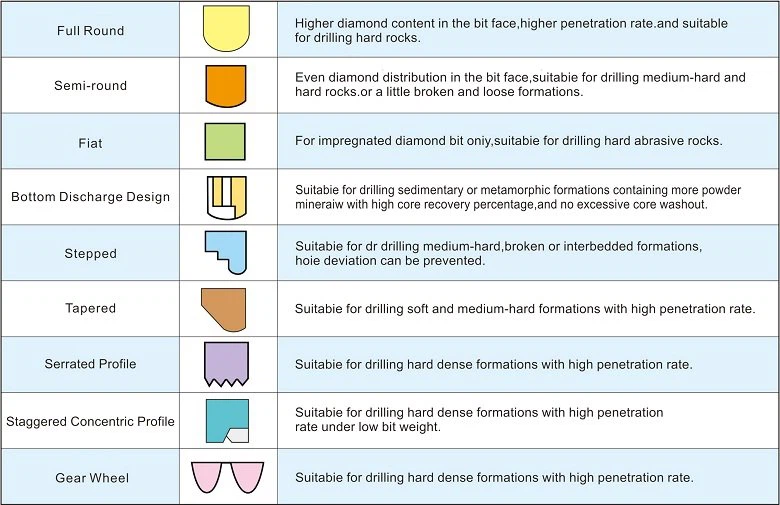

Diamond Core Bit Crown Shapes
